TECHNICAL SPECIFICATIONS
Maximum Concrete Output
15 m³ per hour
Maximum Pump Pressure
70 bar
Maximum Aggregate Size
25 mm
Hopper Capacity
240 litres
Engine
Yanmar 31 HP 3-cylinder diesel engine
Maximum Pumping Height / Distance
60–70 m height / 80–90 m distance
PROJECT ENVIRONMENTS
The Carmix Trailer Pump TP15 is designed for construction environments where concrete must be pumped to areas that are difficult to access.
It is commonly used on civil construction projects where concrete placement requires pumping over distance or height, including tunnels, retaining walls and infrastructure works.
Contact
(02) 4415 9180
0400 365 575
Unit 19, 21 Kangoo Road
Somersby NSW 2250
CARMIX TRAILER PUMP TP15
The Carmix Trailer Pump TP15 is a compact concrete trailer pump designed to deliver reliable concrete pumping performance on construction sites.
Built to work alongside Carmix self-loading concrete mixers, the TP15 enables concrete to be pumped efficiently to locations that cannot be reached by mixers alone.
The Carmix Trailer Pump TP15 provides an efficient solution for pumping concrete and shotcrete on construction sites.
Equipped with a twin-cylinder hydraulic piston pump, the machine delivers reliable pumping performance while maintaining a compact and transportable design. The trailer-mounted configuration allows the pump to be easily towed to site and quickly set up for operation.

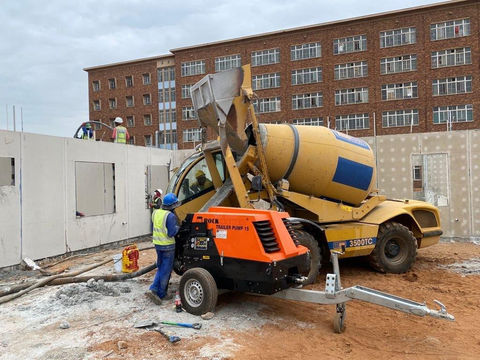

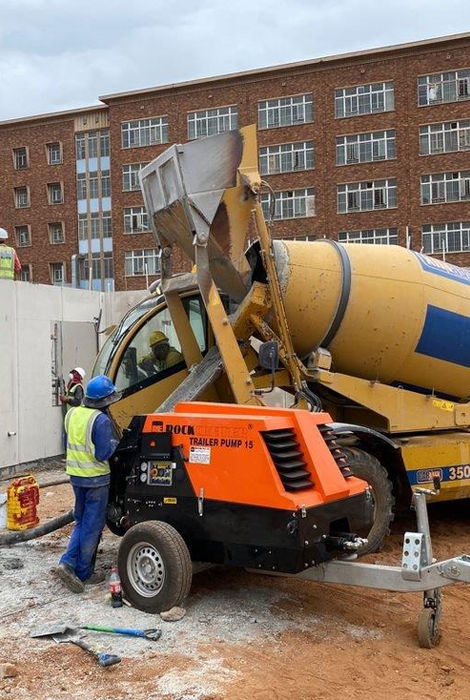

The TP15 is commonly used in combination with Carmix mixers to pump concrete to areas where direct discharge from mixers is not possible, helping contractors maintain productivity on complex construction sites.
Typical Applications
Concrete pumping for construction projects
Shotcrete applications
Infrastructure construction
Tunnel and retaining wall construction
Concrete placement in restricted areas
KEY FEATURES
Compact trailer-mounted concrete pump
Hydraulic twin-cylinder piston pumping system
Designed to operate alongside Carmix mixers
Easy transport and fast setup on site
