Specifications

Condition: Used

Category: Concrete Pump

Make: JACON

Year: 2023

​

Description

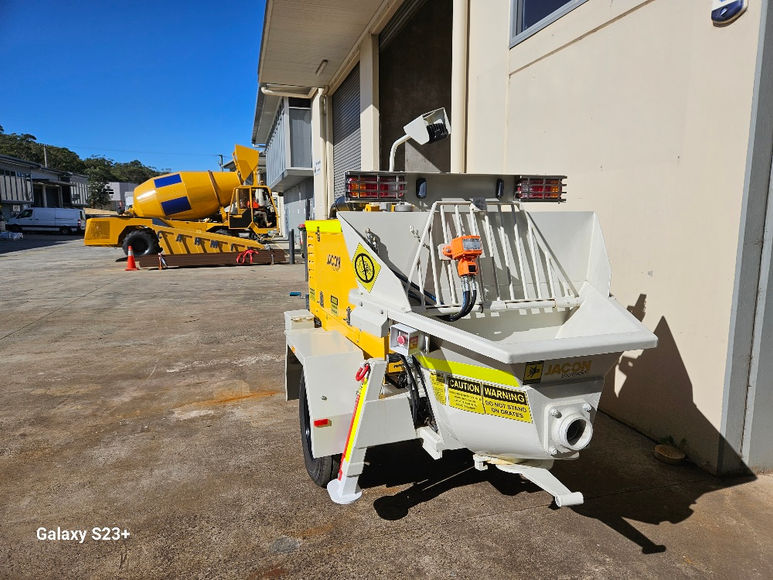

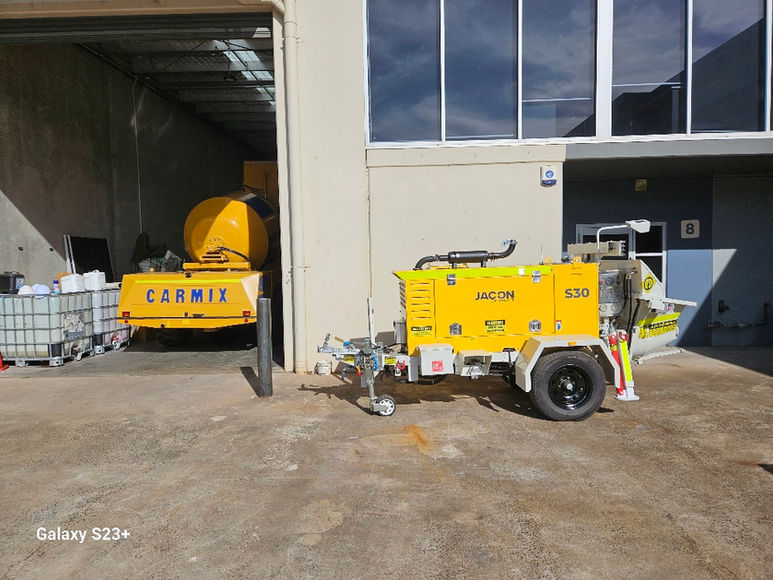

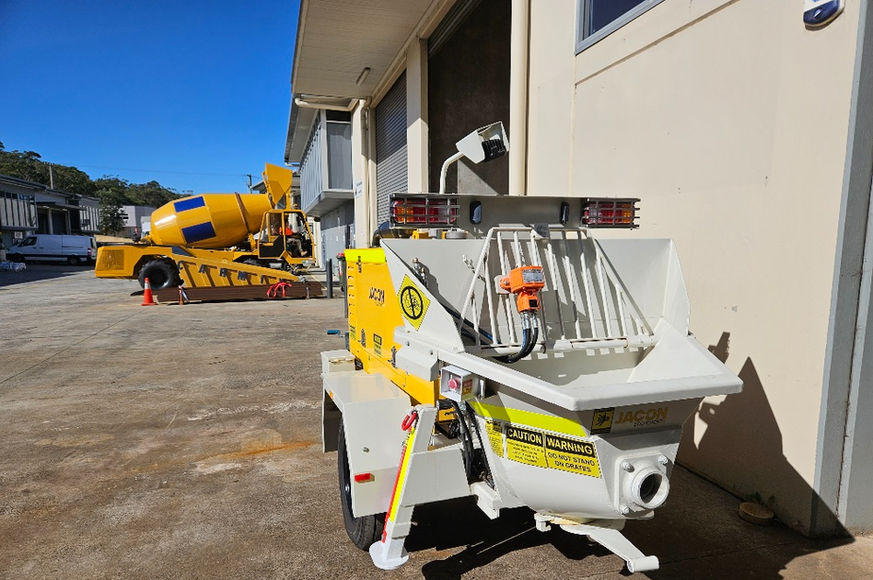

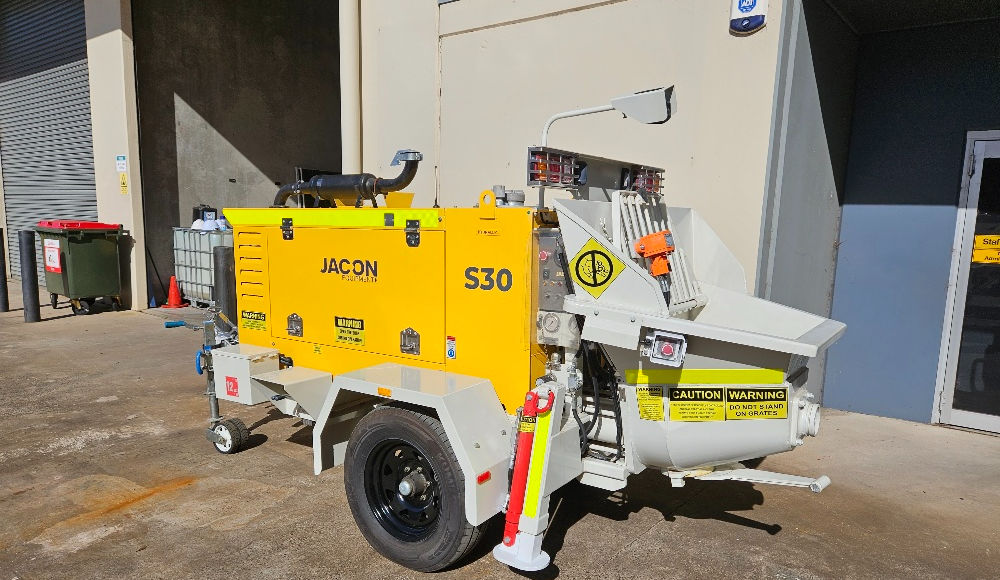

The S30 trailer mounted concrete pump is a small to medium size pump. With an output of up to 30m3/hr, a vertical reach of 80 metres and a horizontal reach of up to 250 metres, this Jacon pump is capable of working in the most versatile jobsites. Containing the superbly engineered “S” valve, the S30 trailer mounted concrete pump is capable of handling extremely harsh mixes as well as low slump concrete. This compact and robust unit can be utilised for many applications within the civil mining industry such as footings, concrete slabs, blockfilling, footpaths and driveways. The option to be set up as a shotcrete machine provides even greater versatility and therefore increased service applications such as earth stabilisation and retaining walls.

Specifications:


• 125mm hard chromed concrete cylinders with 915mm stroke
• S Valve 125-100mm - 100mm, swing transfer valve in hopper with 100mm outlet
• Max pumping Height: 75m
• Max pumping distance: 200m
• Flow rate up to 30 m3/h
• Max aggregate size 25 mm
• Pumping pressure 70 bar

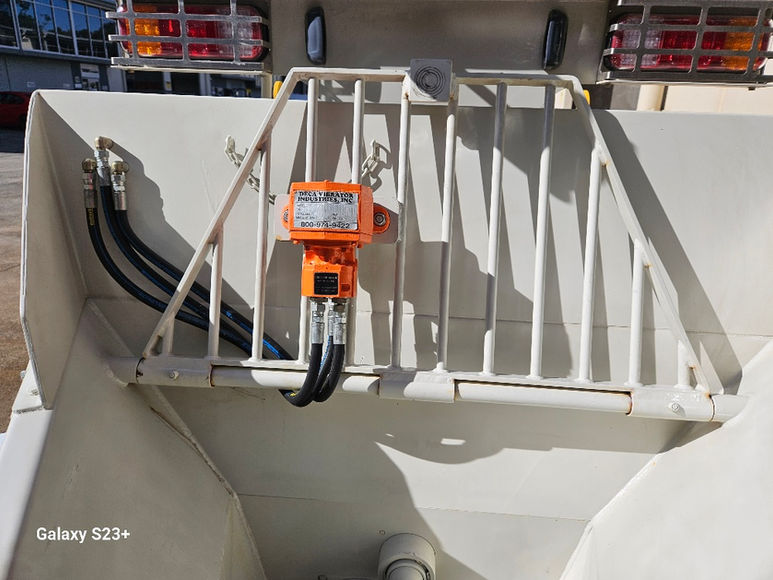

• Hopper capacity 120 liter
• 4 Cylinder Deutz Engine 55KW 2200rpm
• 2 Hydraulic rear stabilizers
• Spotlight on hopper
• Control panel with electromechanical devices
• 4-Function wire remote control
• Compact and easy to move
• Dimensions: w/l/h: 1570/3947/1885 mm
• Weight: 2100 kg
