Typical Applications
Micropile installation
Anchor grouting
Permeation grouting
Compensation grouting
Ground stabilisation works
Foundation strengthening projects
KEY FEATURES
Integrated grout mixing and pumping system
High-shear mixer for consistent grout quality
Compact design for efficient site operation
Reliable pumping performance for injection works
TECHNICAL SPECIFICATIONS
Mixing Tank Capacity
Approx. 300 L mixing tank
Holding Tank Capacity
Approx. 600 L holding tank
Maximum Flow Rate
Up to 220 L/min
Maximum Pressure
Up to 100 bar
Engine
Stage V Tier 4 Final engine
Operation
Hydraulic driven grout pump system
PROJECT ENVIRONMENTS
The STA GP5/22 is designed for construction environments where consistent grout production and reliable pumping performance are essential.
These systems are widely used on geotechnical construction projects where controlled grout injection is required for micropiles, anchors and ground stabilisation works.
The compact and integrated design allows contractors to operate efficiently on busy construction sites while maintaining consistent grout quality.
Contact
(02) 4415 9180
0400 365 575
Unit 19, 21 Kangoo Road
Somersby NSW 2250
STA GP5/22 GROUT PUMP

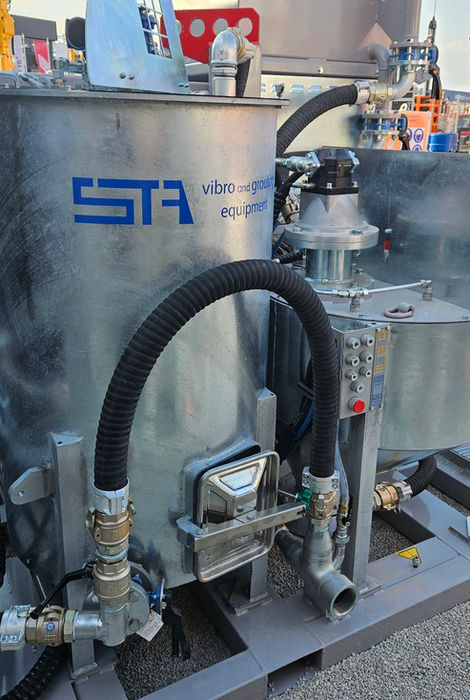

The STA GP5/22 is a compact grout mixing and pumping unit designed for reliable grout preparation and injection on geotechnical and civil engineering projects.
Combining a high-shear mixer with an integrated pumping system, the GP5/22 allows contractors to produce and deliver grout efficiently directly on site.
The STA GP5/22 is engineered to provide dependable grout mixing and pumping performance across a wide range of ground engineering applications.

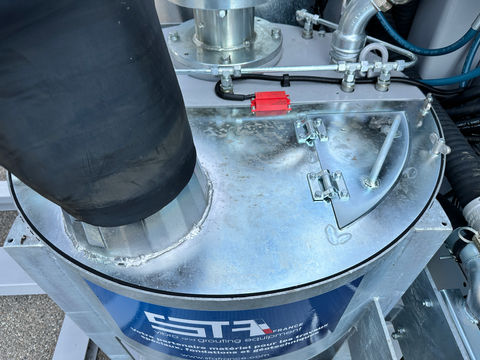

The system integrates a high-shear mixing tank with a holding tank and grout pump, allowing operators to produce consistent grout mixtures and deliver them to the injection point with controlled pressure and flow.
Its compact design makes the GP5/22 well suited to construction sites where reliable grout preparation and efficient site operation are required.
