Typical Applications
Foundation piling
Bored pile construction
Geotechnical drilling
Infrastructure projects
Civil construction works
KEY FEATURES
Parallelogram mast configuration
Kelly bar drilling system for foundation works
High-speed main winch for drilling performance
Designed for drilling in varied ground conditions
TECHNICAL SPECIFICATIONS
Drilling Method
Kelly bar rotary drilling system
Drilling Diameter Range
Approx. 350 mm to 1200 mm
Mast Configuration
Modular mast sections for variable working height
Pull-Down Stroke
Approx. 1,850 mm
Rotary Head
Hydraulic rotary head with sealed bearings and gears in grease bath for durability and protection
Rotary Torque
Approx. 4,300 daN (≈43 kN) torque output
PROJECT ENVIRONMENTS

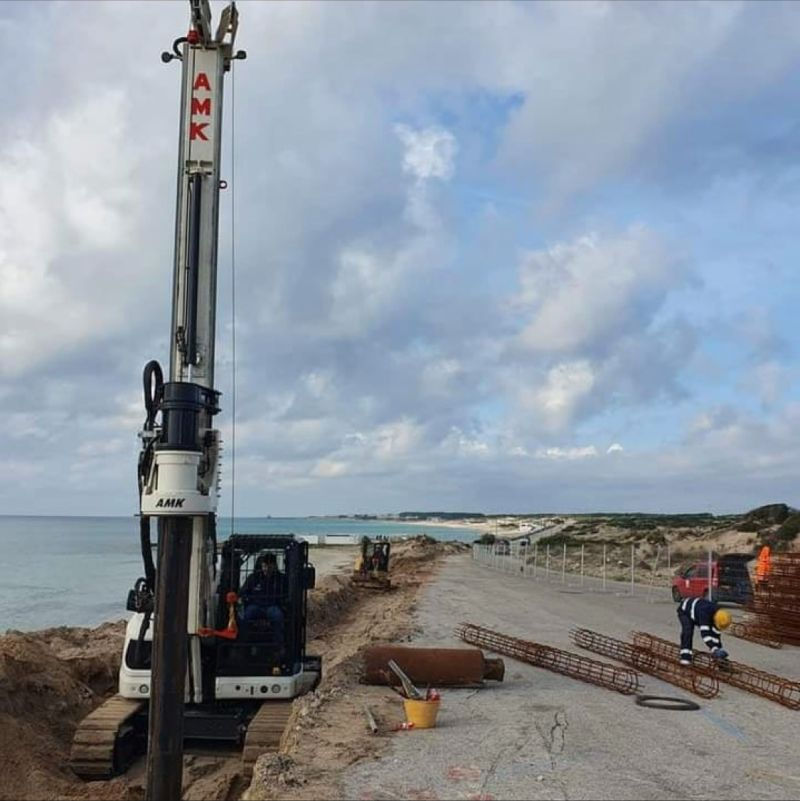

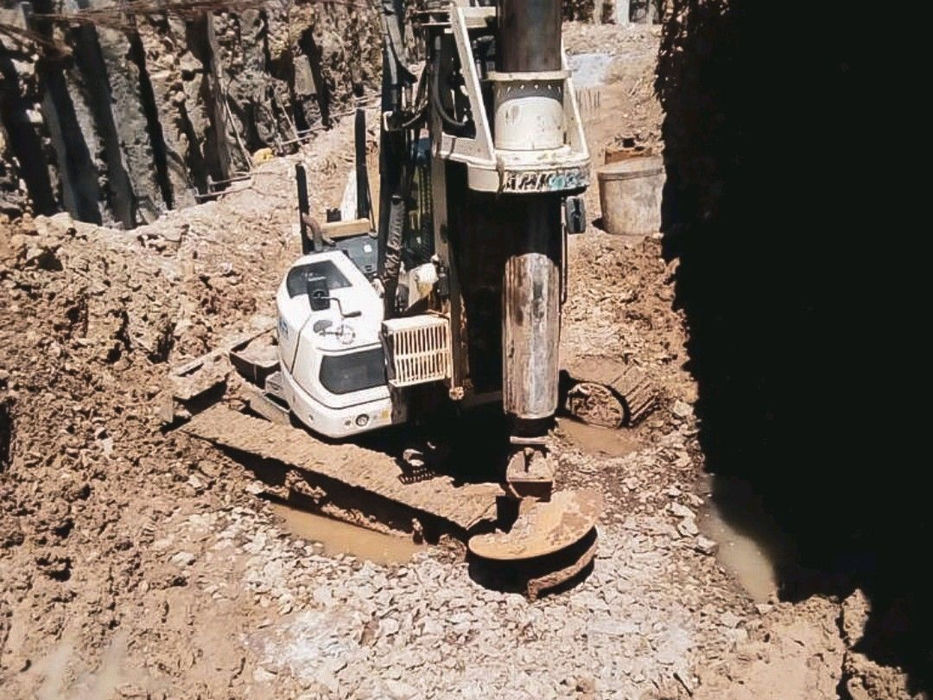

The Tecop AMK 43P is designed for construction environments where foundation drilling and piling operations are required.
It is commonly used on infrastructure and civil projects where bored piles are installed to support structural foundations.
Contact
(02) 4415 9180
0400 365 575
Unit 19, 21 Kangoo Road
Somersby NSW 2250

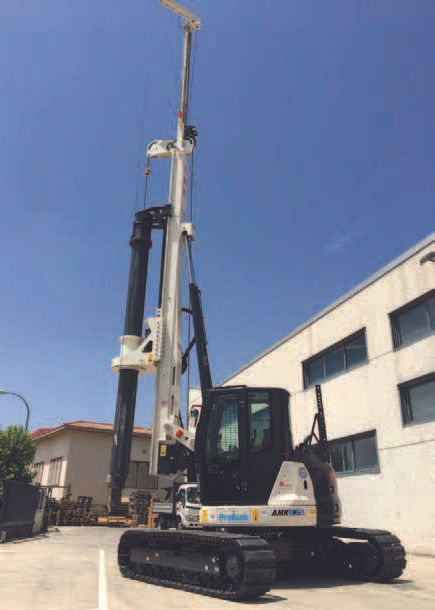

Tecop AMK 43P Drill Rig
The Tecop AMK 43P is a pile drilling rig designed for foundation drilling and geotechnical applications.
Built for performance and flexibility, the machine supports a range of drilling configurations across construction and infrastructure projects.
The Tecop AMK 43P is part of the AMK 43 series of pile drilling rigs, configured in multiple versions including standard, parallelogram and high-extension mast setups.
The rig is designed for foundation drilling using Kelly bar systems and is capable of operating across a range of ground conditions. Its mast can be assembled in sections, allowing the machine to adapt to different working heights and site constraints.
The AMK 43P is commonly used on piling and foundation projects where reliable drilling performance and adaptability are required.
