Sonitec CSL Tubes

Sonitec CSL tubes are designed for crosshole sonic logging (CSL) testing of drilled shafts and concrete piles on deep foundation projects.

Manufactured for durability and reliable signal transmission, Sonitec tubes provide an efficient solution for foundation integrity testing during construction.

Sonitec CSL tubes are used in crosshole sonic logging (CSL) testing to evaluate the integrity of deep foundation elements such as drilled shafts and concrete piles.

Installed within reinforcement cages prior to concrete placement, the tubes allow ultrasonic probes to be lowered through the pile to perform CSL testing after installation. This testing method helps engineers detect potential defects or irregularities within the foundation element.

Sonitec tubes are designed for reliable installation on construction sites and provide consistent testing performance for geotechnical and foundation engineering projects.

Technical Specifications (PDF)

Typical Applications

Crosshole sonic logging testing

Deep foundation testing

Drilled shaft construction

Concrete pile integrity testing

Geotechnical construction projects

KEY FEATURES

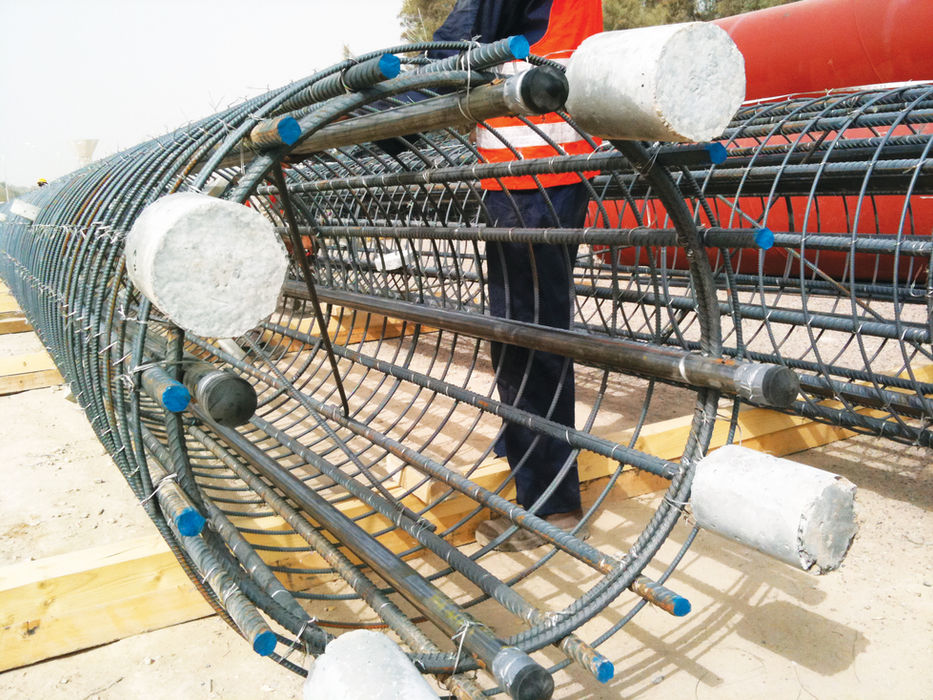

Pile Cage Being Prepped for Lifting into Position

Designed for crosshole sonic logging (CSL) testing

Reliable ultrasonic signal transmission

Durable construction for construction environments

Easy installation on reinforcement cages

TECHNICAL SPECIFICATIONS

Product Type

Crosshole sonic logging tube

Material

Steel CSL tube

Applications

Foundation integrity testing

Installation

Attached to reinforcement cage prior to concrete placement

Testing Method

Crosshole sonic logging (CSL)

Use Case

Testing drilled shafts and concrete piles

PROJECT ENVIRONMENTS

Sonitec CSL tubes are used on construction sites where deep foundation elements require integrity testing.

They are commonly installed on drilled shafts and concrete piles to allow CSL testing to be performed after construction, ensuring the structural quality of the foundation element.
