Piletest PET – Pile Echo Tester
The Piletest PET is a compact pile integrity tester designed for non-destructive testing of concrete piles using the pulse echo method.
It enables engineers and contractors to quickly evaluate the integrity and length of foundation piles during construction.
The Piletest PET (Pile Echo Tester) is designed to perform low strain integrity testing (PIT) on foundation piles.

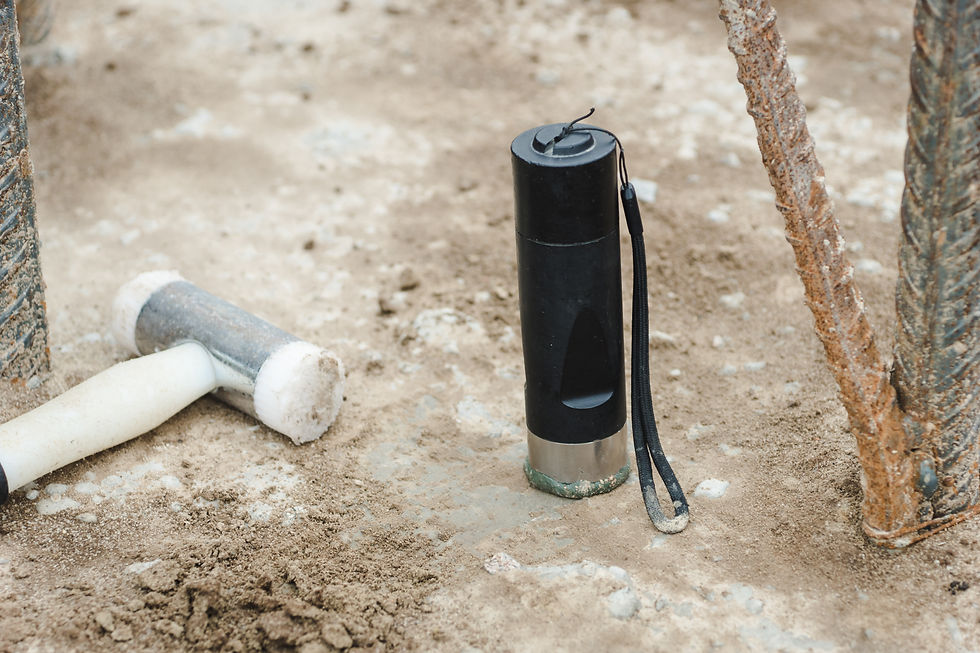

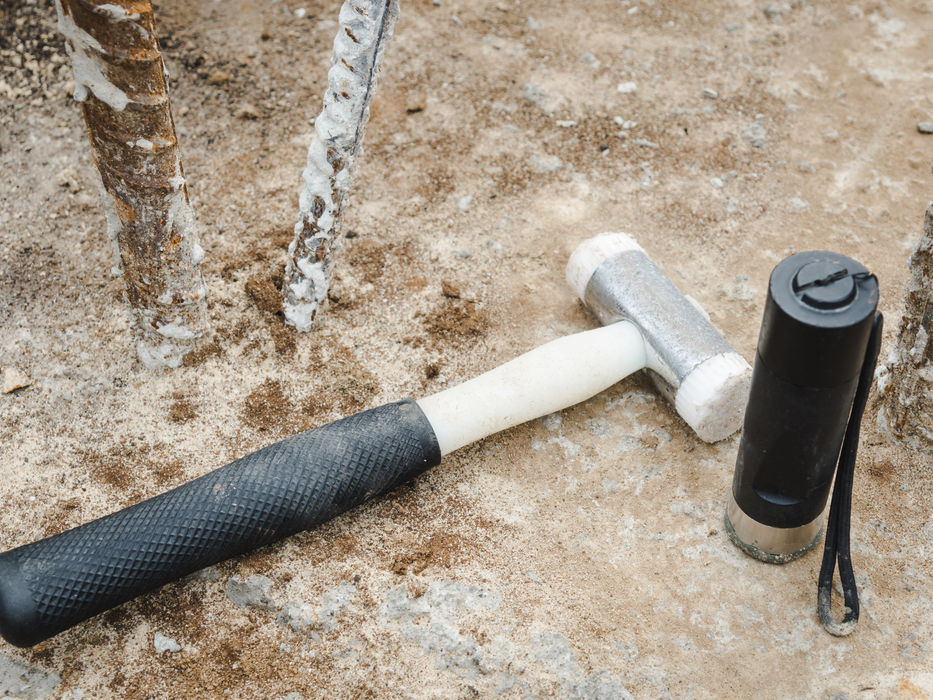

Using a handheld hammer and accelerometer sensor, the system measures wave reflections generated through the pile structure. These signals allow engineers to detect potential defects such as cracks, voids or changes in pile cross-section.
The PET system is widely used on construction sites to verify pile integrity and confirm pile length during foundation installation. Its compact design allows for easy transport and efficient testing operations in the field.
Typical Applications
Pile integrity testing
Quality control of foundation piles
Testing cast-in-place piles
Testing driven piles
Construction quality verification
KEY FEATURES
Low strain pile integrity testing system
Portable testing equipment for field use
Real-time signal analysis and recording
Compatible with various pile types
TECHNICAL SPECIFICATIONS
Dynamic Range
Greater than 120 dB
Sensor Type
High-sensitivity accelerometer
Signal Input
Single channel vibration signal input
Sampling Rate
Up to 50 kHz
Frequency Range
Approx. 0 – 10 kHz
Signal Resolution
24-bit high resolution data acquisition
PROJECT ENVIRONMENTS
The Piletest PET is used on construction sites where foundation piles must be tested to verify structural integrity.
It is commonly used on infrastructure, building and geotechnical projects where quality control of deep foundations is essential.
